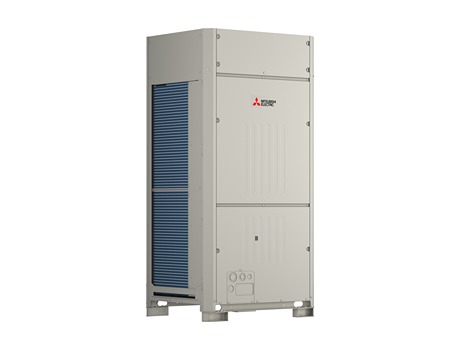

Y Series R32 YXM (8-54HP) 2 Pipe Heat Pump
Enquire Now
The City Multi Y Series R32 VRF Heat Pump systems provide a simple and flexible solution where heating or cooling is required across all or selected indoor units at any given time.
With a modular outdoor unit design, the system offers complete design freedom and is well suited to applications such as open-plan offices, call centres, and retail spaces.
Sales information Logicool technical bulletin Service manuals Installation manual OU Dimensions Schematics Declaration of Conformity
Model Reference | Nom. Cool (kW) | Nom. Heat (kW) | Fuse Rating (Amps) | Pipe Size Gas | Pipe Size Liquid | Electrical Supply |
|
| Indoor Unit | Outdoor Unit | ||||||
| Max 17 FC, 130% | PUHY-M200YXM-A.TH | 22.4 | 25 | 20 | 7 / 8 | 3 / 8 | Three |
| Max 21 FC, 130% | PUHY-M250YXM-A.TH | 28 | 31.5 | 20 | 7 / 8 | 3 / 8 | Three |
| Max 26 FC, 130% | PUHY-M300YXM-A.TH | 33.5 | 37.5 | 25 | 7 / 8 | 3 / 8 | Three |
| Max 30 FC, 130% | PUHY-M350YXM-A.TH | 40 | 45 | 32 | 1 ~ 1/8 | 1 / 2 | Three |
| Max 34 FC, 130% | PUHY-M400YXM-A.TH | 45 | 50 | 32 | 1 ~ 1/8 | 1 / 2 | Three |
| Max 34 FC, 130% | PUHY-M400YSXM-A.TH | 45 | 50 | 20 / 20 | 1 ~ 1/8 | 1 / 2 | Three |
| Max 39 FC, 130% | PUHY-M450YXM-A.TH | 50 | 56 | 40 | 1 ~ 1/8 | 5 / 8 | Three |
| Max 47 FC, 130% | PUHY-M450YSXM-A.TH | 50 | 56 | 20 / 20 | 1 ~ 1/8 | 5 / 8 | Three |
| Max 50 FC, 130% | PUHY-M500YXM-A.TH | 56 | 63 | 50 | 1 ~ 1/8 | 5 / 8 | Three |
| Max 50 FC, 130% | PUHY-M500YSXM-A.TH | 56 | 63 | 20 / 20 | 1 ~ 1/8 | 5 / 8 | Three |
| Max 50 FC, 130% | PUHY-M550YSXM-A.TH | 63 | 69 | 20 / 25 | 1 ~ 1/8 | 5 / 8 | Three |
| Max 50 FC, 130% | PUHY-M600YSXM-A.TH | 69 | 76.5 | 25 / 25 | 1 ~ 1/8 | 5 / 8 | Three |
| Max 50 FC, 130% | PUHY-M650YSXM-A.TH | 73 | 81.5 | 20 / 32 | 1 ~ 1/8 | 5 / 8 | Three |
| Max 50 FC, 130% | PUHY-M700YSXM-A.TH | 80 | 88 | 32 / 32 | 1 ~ 3/8 | 3 / 4 | Three |
| Max 50 FC, 130% | PUHY-M750YSXM-A.TH | 85 | 95 | 32 / 32 | 1 ~ 3/8 | 3 / 4 | Three |
| Max 50 FC, 130% | PUHY-M800YSXM-A.TH | 90 | 100 | 32 / 40 | 1 ~ 3/8 | 3 / 4 | Three |
| Max 50 FC, 130% | PUHY-M850YSXM-A.TH | 96 | 108 | 32 / 40 | 1 ~ 3/8 | 3 / 4 | Three |
| Max 50 FC, 130% | PUHY-M900YSXM-A.TH | 101 | 113 | 40 / 40 | 1 ~ 3/8 | 3 / 4 | Three |
| Max 50 FC, 130% | PUHY-M950YSXM-A.TH | 108 | 119.5 | 20 / 32 / 32 | 1 ~ 3/8 | 3 / 4 | Three |
| Max 50 FC, 130% | PUHY-M1000YSXM-A.TH | 113 | 127 | 20 / 32 / 32 | 1 ~ 3/8 | 3 / 4 | Three |
| Max 50 FC, 130% | PUHY-M1050YSXM-A.TH | 118 | 132 | 20 / 32 / 32 | 1 ~ 3/8 | 3 / 4 | Three |
| Max 50 FC, 130% | PUHY-M1100YSXM-A.TH | 124 | 140 | 32 / 32 / 32 | 1 ~ 3/8 | 3 / 4 | Three |
| Max 50 FC, 130% | PUHY-M1150YSXM-A.TH | 130 | 145 | 32 / 32 / 32 | 1 ~ 3/8 | 3 / 4 | Three |
| Max 50 FC, 130% | PUHY-M1200YSXM-A.TH | 136 | 150 | 32 / 32 / 32 | 1 ~ 3/8 | 3 / 4 | Three |
| Max 50 FC, 130% | PUHY-M1250YSXM-A.TH | 140 | 156.5 | 32 / 32 / 40 | 1 ~ 3/8 | 3 / 4 | Three |
| Max 50 FC, 130% | PUHY-M1300YSXM-A.TH | 146 | 163 | 32 / 40 / 40 | 1 ~ 3/8 | 3 / 4 | Three |
| Max 50 FC, 130% | PUHY-M1350YSXM-A.TH | 150 | 168 | 40 / 40 / 40 | 1 ~ 3/8 | 3 / 4 | Three |
Features and Benefits
- Energy Efficient Heat Pump Operation – Delivers effective heating or cooling to internal spaces, supporting a simple and flexible system design
- Lower GWP R32 Refrigerant – for reduced carbon impact and future-ready legislation compliance
- Ultra-Compact Modular Design – Smaller unit footprint allows installation in tight spaces without compromising on performance
- Broad Indoor Unit Compatibility – Connects to a wide range of unit types and capacities, making it suitable for varied building applications
- Extended Heating Range (-25°C) – Ensures reliable heating even in severe winter conditions by maintaining efficient system operation
- Easy-to-Maintain Safety Feature Options – For reduced onsite time and costs while supporting occupant peace of mind
- Low Noise Operation – Features a 5-step low noise mode that minimises sound levels for quieter surroundings
- 113m Vertical Height Separation – Offers generous height allowance between indoor and outdoor units, enabling design flexibility in larger buildings
