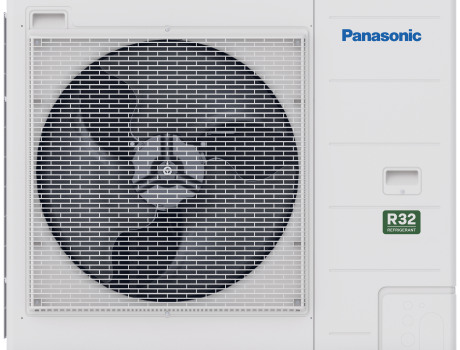

R32 PZH4 NX Elite Single Fan C/Units for Twin to Quad Application
Enquire Now
Specification and information for Panasonic PZH4 NX Elite condensing units to allow Twin, Triple and Quad Combinations
Condensing Units from 3.5kW to 14kW (PAC-i)
| Outdoor Unit Technical Data | |||||||
| Combinations | Single | Single - Quad | |||||
| Model | U-36PZH3E5 | U-50PZH3E5 | U-60PZH3E5 | U-71PZH4E5(8) | U-100PZH4E5(8) | U-125PZH4E5(8) | U-140PZH4E5(8) |
| Height (mm) | 695 | 695 | 695 | 996 | 996 | 996 | 996 |
| Width (mm) | 875 | 875 | 875 | 980 | 980 | 980 | 980 |
| Depth (mm) | 320 | 320 | 320 | 370 | 370 | 370 | 370 |
| Weight (kG) | 42 | 42 | 43 | 66 | 82 | 84 | 84 |
| Airflow (m3/min) Hi/Med/Lo | 14.0/13.0/10.0 | 16.0/15.0/12.0 | 21.0/19.0/15.0 | 62.0/66.0 | 76.0/70.0 | 86.0/78.0 | 89.0/83.0 |
| Sound Pressure Hi/Med/Lo | 30 / 27/ 22 | 34 / 30 / 25 | 30 / 26 / 23 | 50 | 52 | 55 | 56 |
| Sound Power Hi/Med/Lo (dBA) | 53 / 50 / 45 | 57 / 53 / 48 | 53 / 49 / 46 | 67 | 69 | 73 | 74 |
| Liquid (mm(inches)) | 6.35 (1/4) | 6.35 (1/4) | 6.35 (1/4) | 9.52 (3/8) | |||
| Gas (mm(inches)) | 12.70 (1/2) | 12.70 (1/2) | 12.70 (1/2) | 15.88 (5/8) | |||
| Max Pipe Run (m) | 40 | 40 | 40 | 60 | 100 | 100 | 100 |
| Max Pipe Lift (m) | 15 (15 if condenser is lower than IU) | 30 (15 if condenser is lower than IU) | |||||
| Pre-charged to (m) | 7.5 | 7.5 | 7.5 | 30 | 30 | 20 | 20 |
| Standing Charge (kG) | 1.13 | 1.13 | 1.15 | 1.95 | 2.70 | 3.00 | 3.00 |
| Additional Charge/m (g) | 15 | 15 | 15 | 30 | 40g/m to 80m then 25g/m to 100m | ||
| Refrigerant | R32 | ||||||
| Phase | Single | Single (Three) | |||||
| Power Supply to | Outdoor | ||||||
| Fuse Rating (A) | 20 | 20 | 25 | 25 | 32 (16) | 40 (16) | 40 (16) |
| Interconnecting | 3 Core plus earth |
||||||
| Twin Pipe Kit | Twin Combination Not Possible | CZ-P224BK2BM | |||||
| Triple Pipe Kit | Triple Combination Not Possible | CZ-P3HPC2BM | |||||
| Quad Pipe Kit | Quad Combination only possible on size 125 condenser with CZ-P224BK2BM x 3 | ||||||
Compatible products
Features and Benefits
- Auto restart after power failure
- Auto changeover
- Twin, triple and double-twin split options
- PAC-i Elite Seasonal Inverter
- ErP Compliant
- Cooling to -15°C
- Heating to -20°C
- R22 Replacement Technology
Power/Wiring
PZH4 (2024 NX) Models
For Single Split applications, Panasonic PZ(H)3 and PZ(H4) PAC-i systems take the power from the Condensing Unit to the indoor unit via a 4-core cable (L, N, E & Comms).
For Multi Split applications, follow the example below. Take L(1) and N(2) from Fan Coil 1 to Fan Coil 2. Also wire Controller into R1 & R2 on Master and then Daisy Chain this to R1 & R2 on the Slave.
PZ2 (20 and 25kW) Models only
Panasonic PZ2 PAC-i systems require a separate power supply to Indoor (3 Amp isolator for all units) and Outdoor Units. It is also possible to supply power to outdoor unit only, and run power to indoor via a 3 core flex from a field supplied inline fuse. Please click here for further information. A separate 2 core 0.75mm² screened cable will also be required for data connection
Three Phase Triple Split example
Piping
CZ-P224BK2BM Pipe Kit required for all PAC-i Elite Twin Split installations up to 14kW
CZ-P680BK2BM Pipe Kit required for all PAC-i Elite Twin Split installations 20kW to 25kW
CZ-P3HPC2BM Pipe Kit required for all PAC-i Elite Triple Split installations up to 10kW to 20kW
Combination of pipe kits required for Quad Applications. Please see table below or contact Logicool for confirmation
