NX ELITE PK3 Wall Mount (R32)

New for 2021: Panasonic PK3 Commercial Wall Mounted Systems featuring Nanoe-X Technology.

The PK3 wall-mounted units with stylish matt color can be offered for many applications such as studios, gyms, high ceiling areas and even computer server rooms.
The compact design and flat face ensure discreet installation, even in a small space.

Incorporating nanoeTM X as a standard feature, a new NX Series delivers both a new level of temperature control and the quality air.
Integrated with new remote controller technology providing great accessibility and convenience in a stylish design.
Through a crossbreeding of two differing technologies, Panasonic is leading air-conditioning to a whole new level.

Model Reference
Nom.
Cool
(kW)

Nom.
Heat
(kW)

Max
Pipe
(m)
EuP Lot 10
Energy Rating

Fuse
(Amps)

Pipe
Size
Gas

Pipe
Size
Liquid

Electrical
Supply
Indoor UnitOutdoor UnitSCOPSEER
S-3650PK3EU-36PZH3E53.604.00404.908.40201/21/4Single
S-3650PK3EU-50PZH3E55.005.60404.708.00201/21/4Single
S-6010PK3EU-60PZH3E56.107.00404.807.20251/21/4Single
S-6010PK3EU-71PZH3E57.108.00504.706.80255/83/8Single
S-6010PK3EU-100PZH3E59.509.50854.106.40325/83/8Single
S-6010PK3EU-71PZH3E87.108.00504.706.70165/83/8Three
S-6010PK3EU-100PZH3E89.509.50854.106.30165/83/8Three

System Combination

  • Indoor Unit(s)
  • Condensing Unit
  • CZ-RTC5 Controller (quoted by Logicool as standard option)

Optional Controls and Accessories (Indoor Unit only)

  • CZ-RTC6B Hard-Wired Controller
  • CZ-RTC6BL Hard-Wired Controller with Bluetooth
  • CZ-RTC6BLW Hard-Wired Controller with WLAN and Bluetooth

  • CZ-RWSU3 and CZ-RWRU3W Infra -Red Controller and Adapter
  • CZ-CAPWFC1 Commercial WLAN Adapter (not required when using CZ-RTC6BLW Controller)
  • CZ-KPU3AW Grille with in-built EcoNavi functionality
  • PAW-WTRAY – Tray for condenser water compatible with outdoor
    elevation platform
  • PAW_GRBDSE20 – Outdoor base ground support for noise and vibration
    absorption
  • PAW-GRDST40 – Outdoor elevation platform 400 x 900 x 400mm
  • CZ-140DRS1 Drain Kit
  • CZ-P224BK2BM for Twin-Split Application
  • CZ-RE2C2 Simplified, Hard Wired Controller
  • CZ-CENSC1 EcoNavi Sensor
  • Additional Controls available here

Key Features



Power/Wiring:

New Panasonic NX systems simply require power to condensing unit and then a 3 core plus earth connection between outdoor unit and indoor unit.



Advanced Technical Data

Indoor Unit Technical Data
ModelS-3650PK3ES-3650PK3ES-6010PK3ES-6010PK3ES-6010PK3E
Cooling (kW) - Nominal3.605.006.107.109.00
Heating (kW) - Nominal3.605.006.107.109.00
Cooling (kW) - UK 23°C DB / 30°C)3.404.806.006.709.00
Heating (kW) - UK (20° / 0°C)3.905.606.106.909.60
Sensible Cool Capacity (KW) - UK2.403.204.004.405.60
Sound Pressure Level (dBA)35/31/2740/36/3247/44/4047/44/4049/45/41
Sound Power Level (dBA)51/47/4356/52/4863/60/5663/60/5665/61/57
Height - mm (grille)302
Width - mm (grille)1120
Depth - mm (grille)236
Weight - kG (grille)1313141414
Max Air Flow Rate (m³/min)13.0016.0020.0020.0022.00
Fused Spur (A)5 (Power to Outdoor)

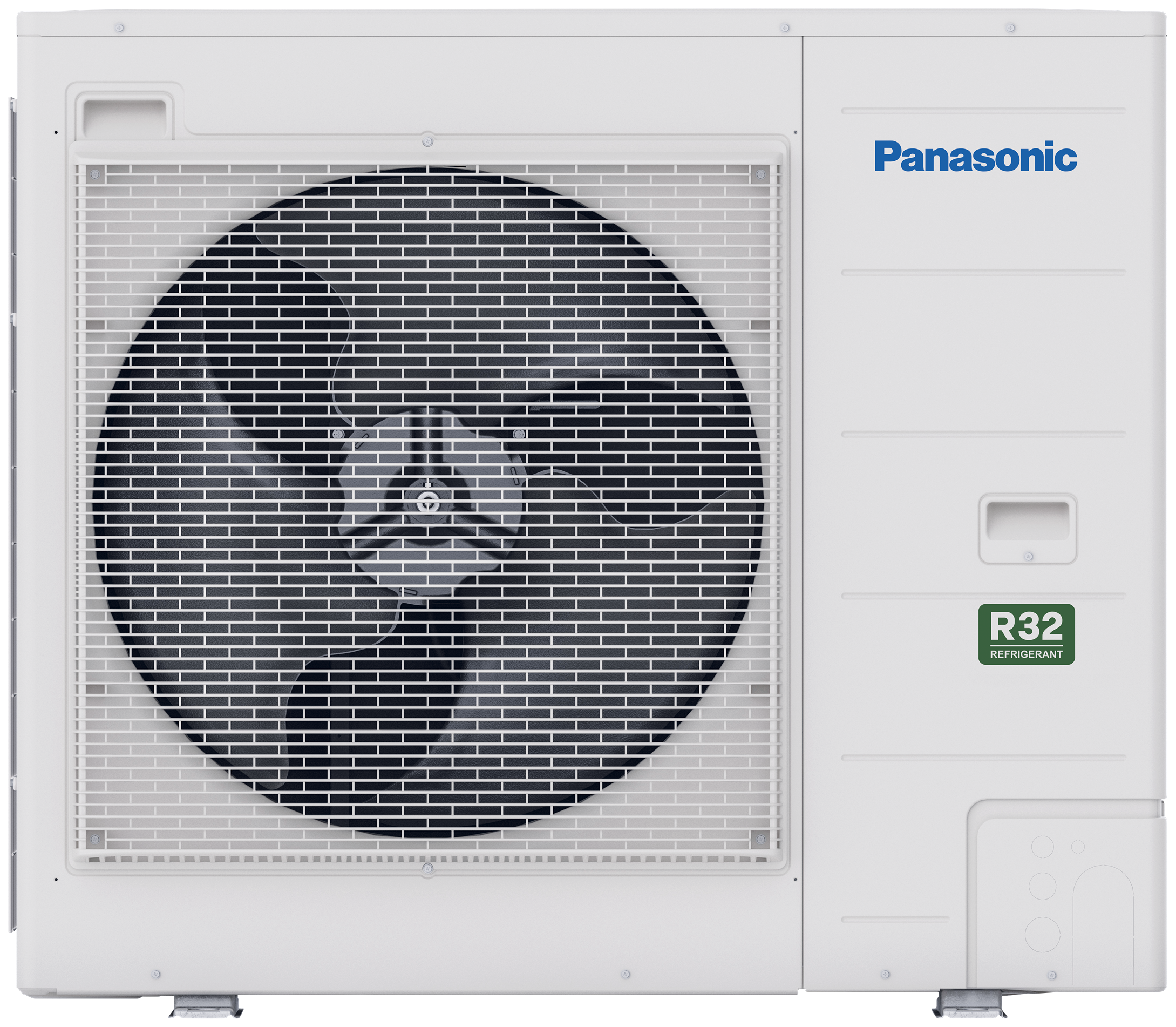

Outdoor Unit Technical Data
CombinationsSingleSingle and Twin
ModelU-36PZH3E5U-50PZH3E5U-60PZH3E5U-71PZH3E5(8)U-100PZH3E5(8)U-125PZH3E5(8)U-140PZH3E5(8)
Height (mm)695695695996141614161416
Width (mm)875875875940940940940
Depth (mm)320320320340340340340
Weight (kG)42424365989898
Airflow (m3/min)
Hi/Med/Lo
14.0/13.0/10.016.0/15.0/12.021.0/19.0/15.021.0/19.0/15.032.0/26.0/21.034.0/31.0/23.036.0/32.0/25.0
Sound Pressure
Hi/Med/Lo
30 / 27/ 2234 / 30 / 2530 / 26 / 2330 / 26 / 2333 / 29 / 2535 / 31 / 2739 / 35 / 29
Sound Power
Hi/Med/Lo (dBA)
53 / 50 / 4557 / 53 / 4853 / 49 / 4653 / 49 / 4656 / 52 / 4858 / 54 / 5062 / 58 / 52
Liquid (mm(inches))6.35 (1/4)6.35 (1/4)6.35 (1/4)9.52 (3/8)
Gas (mm(inches))12.70 (1/2)12.70 (1/2)12.70 (1/2)15.88 (5/8)
Max Pipe Run (m)40404050858585
Max Pipe Lift (m)15 (15 if condenser is lower than IU)20 (15)303030
Pre-charged to (m)7.57.57.510303030
Standing
Charge (kG)
1.131.131.151.953.053.053.05
Additional
Charge/m (g)
15151545454545
RefrigerantR32
PhaseSingleSingle (Three)
Power Supply toOutdoor
Max Run
Current (A) Cool
4.206.907.259.00 (3.00)11.10 (3.80)16.50 (5.60)19.60 (6.60)
Max Run
Current (A) Heat
4.707.358.659.00 (3.05)13.30 (4.50)19.10 (6.45)22.00 (7.55)
Fuse Rating (A)2020252532 (16)40 (16)40 (16)
Interconnecting3 Core plus earth
Twin Pipe KitTwin Combination Not PossibleCZ-P224BK2BM
Triple Pipe KitTriple Combination Not PossibleCZ-P3HPC2BM
Quad Pipe KitQuad Combination Not PossibleCZ-P224BK2BM x 3N/A



Twin/Triple/Quad Configurations

Please click here for link to Condensing Unit page
