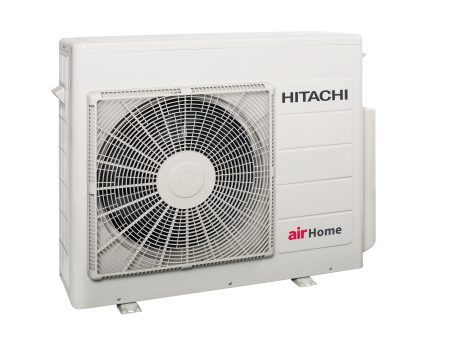

Airhome Multi Outdoor R32
Enquire Now
Ideal for small applications, the Hitachi Airhome Multi system allows you to connect up to three Airhome 400 Wall Mounted Indoor Units.
Control can be complemented by the Hitachi AirCloudGo Home Control App.
When it’s cooler outside, the heat pump system delivers low-energy heating with minimal maintenance. In milder climates, it can even replace alternative heating systems.
Features and Benefits
Our Multi System allows you to mix and match Hitachi AirHome 400 Wall Mounted Indoor Units.
To complement the system, the Hitachi AirCloudGo app turns your smartphone into a programmable remote control. Use the app to turn units on or off, adjust the temperature and fan speed, and set custom schedules. Compatible with Google Home and Alexa.
| Model Reference | Nom. Cool (kW) | Nom. Heat (kW) | Max Pipe (m) | EuP Lot 10 Energy Rating | Fuse (Amps) | Pipe Sizes | Min/Max Pipe Per Leg (m) | Electrical Supply |
|||
| Combinations | Outdoor Unit | SCOP | SEER | Gas | Liquid | ||||||
| 2 min, 2 max | RAM-E40N2HAE | 4.00 | 5.20 | 35 | 4.20 | 8.25 | 16 | 2 x 3/8 | 2 x 1/4 | 3/25 | Single |
| 2 min, 2 max | RAM-E53NH2AE | 5.30 | 6.30 | 45 | 4.20 | 8.10 | 16 | 2 x 3/8 | 2 x 1/4 | 3/25 | Single |
| 2 min, 3 max | RAM-E53N3HAE | 5.30 | 6.30 | 45 | 4.20 | 8.10 | 16 | 3 x 3/8 | 3 x 1/4 | 3/25 | Single |
Compatible Indoor Unit
POWER/WIRING: Power supply to Outdoor Unit with 3C + E interconnecting cable.
