Jet Air Stream MANUAL
Enquire Now
Designed for the large spaces that require high air distribution, such as gymnasiums, production areas and warehouses, introducing the Panasonic Jet Air Stream:
Perfect for large, high-ceiling spaces Large spaces are often heated with boilers and unit heaters, which are inefficient, noisy, complex, and expensive fossil fuel systems that rarely offer summer cooling integration.
The Jet Air Stream provides an efficient and sustainable solution for year-round heating and cooling in large spaces. It ensures optimal user comfort, a quiet environment, and is much easier to install than other systems.
This page features the MANUAL version.
| Indoor Unit Technical Data | |||
| MODEL Model | P-VTVF140NC5PE | P-VTVF140NC5PE | P-VTVF250NC5PE |
| Compatible Condenser | U-140PZH4E5 | U-140PZH4E8 | U-250PZH4E8 |
| Cooling (kW) - Nominal | 13.40 | 13.40 | 22.00 |
| Heating (kW) - Nominal | 15.30 | 15.30 | 25.60 |
| EER (Nominal) | 3.38 | 3.38 | 2.74 |
| COP (Nominal) | 3.33 | 3.33 | 3.55 |
| Sound Pressure Level (dBA) | 60 | 60 | 64 |
| Height - mm | 802 | 802 | 1026 |
| Width - mm | 1010 | 1010 | 1360 |
| Depth - mm | 893 | 893 | 953 |
| Weight - kG | 75 | 75 | 97 |
| Nominal Air Flow Rate (m³/hr) | 2560 | 2560 | 5010 |
| Static Pressure (Pa) | 170 | 170 | 170 |
| Power Supply | Single Phase (220-240v/50Hz/1Ph) | ||
| Fused Spur (A) | TBC | ||
For "Auto Nozzle" SMART Model, please used "MC5" type. Specifications are identical for MC5 and NC5 models although additional ducts are required for manual type
Compatible products
System Combination
- Indoor Unit(s)
- Condensing Unit
- PCZ-AHRX0012 Controller (quoted by Logicool as standard option)
- PCZ-ARHX0681 Recessed Mounting Box for Controller)
- PCZ-AHRX0051 Return Air Module (Model 140) – required for installations over 3.5m
- PCZ-AHRX0052 Return Air Module (Model 250) – required for installations over 3.5m
- PCZ-AHRX0071 Ground Air Intake Plenum – required for installations over 3.5m
- Note that unit comes complete with CZ-RTC5B installed within the unit for commissioning purposes only
Key Features
- Energy-saving solution for year-round heating and cooling in large and high spaces
- High air volume up to 5,000m³/h
- Long Air Flow Distance (up to 30m)
- High Air Distribution for Large Spaces
- Self-Directing Nozzles
- Optional Ducted Front Panels (DUCTED model only)
Accessories
1. PCZ-AHRX0012: Touch panel controller with Modbus integration and group control up to 8 units.
2. PCZ-AHRP0681: Recessed mounting box for controller.

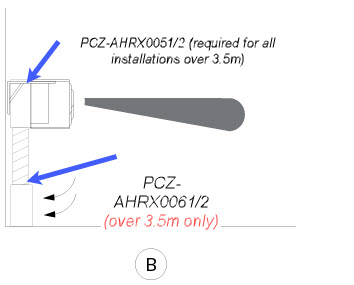

3. PCZ-AHRX0051: Ducted air intake plenum (1xDN 355mm) for VTVF140N and VTVF140P (for installations over 3.5m)
4. PCZ-AHRX0052: Ducted air intake plenum (2xDN 355mm) for VTVF250N and VTVF250P (for installations over 3.5m)
5. PCZ-AHRX0061: Ground air intake module (VTVF250 requires two and only for installations over 3.5m)
6. PCZ-AHRX0071: Air supply grille for ducts (Ducted Models only).
