Hitachi’s Utopia IVX Prime Premium range are high specification single and multi-split systems with all the benefits of VRF, including
individual control of each indoor unit with an increased number of twin, triple and quad combinations in addition to delivering
excellent part-load efficiency.
With cooling capacities and heating capacities from 3.2kW to 37.5kW, a maximum of 4 indoor units are connectable to a single
outdoor unit, with individual control and efficiencies achieved as high as A++/A+ (depending on model/combinations).
Twin and, Triple and Quad Combinations Possible
|Max. Indoors||Outdoor Unit|
|Max 4 FC, 115%||RAS-4HVRP2E||10.00 / 11.20||R32||75||32||5/8||3/8||3C + 2C*||Single|
|Max 4 FC, 115%||RAS-5HVRP2E||12.50 / 14.00||R32||75||32||5/8||3/8||3C + 2C*||Single|
|Max 4 FC, 115%||RAS-6HVRP2E||14.00 / 16.00||R32||75||32||5/8||3/8||3C + 2C*||Single|
|Max 4 FC, 115%||RAS-4HRP2E||10.00 / 11.20||R32||70||20||5/8||3/8||3C + 2C*||Three|
|Max 4 FC, 115%||RAS-5HRP2E||12.50 / 14.00||R32||75||20||5/8||3/8||3C + 2C*||Three|
|Max 4 FC, 115%||RAS-6HRP2E||14.00 / 16.00||R32||75||20||5/8||3/8||3C + 2C*||Three|
|Max 4 FC, 120%||RAS-8HNCE||20.00 / 22.40||R410a||100||32||7/8**||3/8||3C + 2C*||Three|
|Max 4 FC, 120%||RAS-10HNCE||25.00 / 28.00||R410a||100||32||7/8**||1/2||3C + 2C*||Three|
|Max 4 FC, 120%||RAS-12HNCE||30.0 / 33.50||R410a||100||32||7/8**||1/2||3C + 2C*||Three|
Compatible Indoor Units
Features and Benefits
Comfort and ease of installation
Improved connectivity (up to 4 indoors per outdoor unit, minimising pipework required) and zone-by-zone individual control makes IVX Comfort the perfect solution where VRF flexibility is needed but at a lower cost.
The individual Thermo-on and Thermo-off is possible even when the remote control is connected to multiple internal units.
The system is able to handle changes in air conditioning needs for each individual space, e.g., internal zone or perimeter area, and thereby
optimise energy efficiencies.
This produces a highly comfortable environment and great electricity savings.
Easily adaptable and reconfigurable
Each indoor unit can be operated completely independently within the same mode.

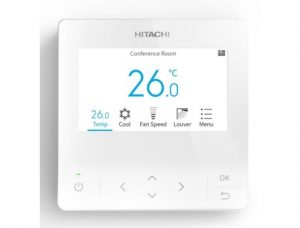

Controlled from a dedicated remote controller, each room’s occupants can monitor and adjust operating temperatures according to their specific requirements.
This facilitates maximum energy savings and total future flexibility, as units have individual control regardless
of possible future reorganisation of the interior spaces.
Compatibility with R22 pipework
New Utopia IVX Comfort (and IVX Premium) are compatible* with existing R22 gas installations. Both models – which use R410A refrigerant gas – can be installed without having to change the existing installed piping as the system adjusts the pressure so as
not to damage the existing piping.
Advanced Technical Data
|Outdoor Unit Technical Data|
|Connectivity||1 - 4||1 - 4||1 - 2 (Single to Twin Only)|
|VRF Operation||90 - 115% Connectivity. Max 4 I/Units||90 - 115% Connectivity. Max 2 I/Units|
|Sound Pressure Cooling (dBA)||54||54||56|
|Sound Pressure Cooling Night Mode (dBA)||51||51||51|
|Sound Power Cooling (dBA)||70||72||72|
|Liquid (mm(inches))||9.52 (3/8)||9.52 (3/8)||9.52 (3/8)|
|Gas (mm(inches))||15.88 (5/8)||15.88 (5/8)||15.88 (5/8)|
|Max Pipe Run (m)||75||75||75|
|Min Pipe Run (m)||5|
|Max Pipe Lift (m)||30 / 20 (higher OU / lower OU)|
|Pre-charged to (m)||20|
|Standing Charge (kG)||3.0|
|Additional charge (g/m)||45|
|Phase||Single (Three)||Single (Three)||Single (Three)|
|Power Supply to||Indoor / Outdoor (see notes below)|
|Max Start/Run Current (A)||12.6 (4.4)||16.5 (5.8)||21.1 (7.4)|
|Max Current (A)||22.5 (15)|
|Fuse Rating (A)||25 (20)|
|Interconnecting||2C 0.75mm Screened Cable (note that power can also be fed from condenser separately via inline fuse)|
|System Power Input (Cool/Heat) - kW||2.51 / 2.60||3.42 / 3.39||4.38 / 3.64|
|Pipe Kit Required (Twin)||E-102SN4 x 1|
|Pipe Kit Required (Triple)||E-102SN4 x 2|
|Pipe Kit Required (Quad)||E-102SN4 x 3|
