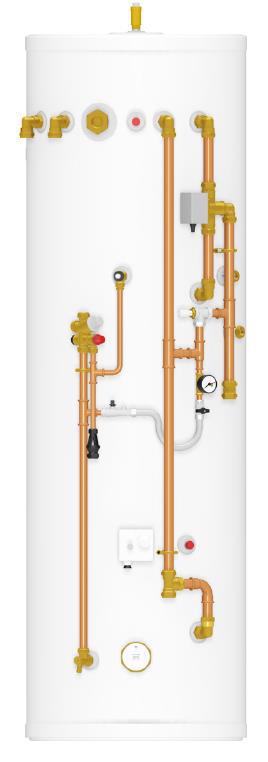

Panasonic DUO Pre-Plumbed Cylinders (EN12897)

The best option to combine with Panasonic Mono-bloc units. DHW tank with included buffer tank and pre-plumbed pipework for simpler installation.

Designed for all applications, the DHW tank with a buffer tank included is particularly suitable for fast integration on an existing installation.

This tank includes a 3-way valve.

Easy to install, and high efficiency for DHW production and for heating.

Model Reference
Water
Volume (Litres)
Dimension
Heating Coil
Surface (m2)

Electric
Heater (kW)

Fuse
(Amps)

Temp. setting
(P&T valve)
Energy loss at
65c (kWh/24h)
DescriptionPart NumberHeight
(mm)
Diameter
(mm)
Weight
(kG)


Panasonic Pre-Plumbed
PAW-TD20B7PP-UK185+701992550513.0313132.22
PAW-TD30B7PP-UK285 +702030630643.0313132.51



Features and Benefits

  • Designed to work with any Panasonic A2W Heat Pump
  • Coil Volume and Buffer Volume designed to accurately reflect Panasonic A2W Heat Pump requirement
  • Labour cost saving on installation
  • Quicker and more efficient installation
  • Improved performance from Panasonic Heat Pump
  • Compact Footprint. Connections simplified.
  • No additional space required for Buffer Tank



Advanced Technical Data

Model Reference
PAW-TD20B7PP-UK

PAW-TD30B7PP-UK
Description
Height(mm)19922030
Depth(mm)550630
Weight (empty)(kG)5164
Volume(l)200 + 70300 + 70
Power supplyV‑Ph‑Hz230/1/50
Volume Separation Data.Hot Water TankBuffer TankHot water tankBuffer tank
VolumeL1857028530
Pressure regulating valve settingbar331,0 (10)0,3 (3,0)
Expansion relief valve settingbar4.54.51,5 (15)0,39 (3,9)
Temperature setting (P&T valve)°C9595
Connectionsinch1” compression
Expansion vessel size (volume)litres24
G3 kit included.Yes
Heating coil surface3
Electrical heaterkW3
Energy loss at 65 °CkWh/24h2.222.51
Energy efficiency ratingClassC
Standing lossW93104
