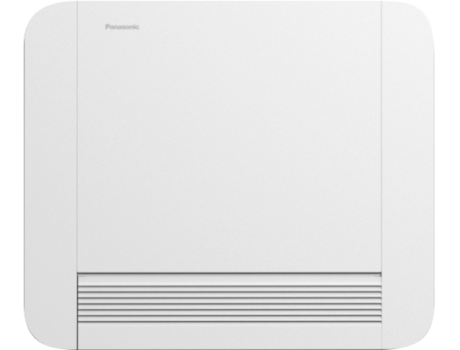

AQUAREA AIR SMART FAN COIL FLOOR STANDING
New line up of super low temperature radiators for Heat Pump application
Aquarea Air Smart fan coils have a minimal visual impact and can be elegantly integrated into any home or office environment, adapting to any type of furniture.
Designed to provide both heating and cooling in one compact unit, they maximise energy savings when combined with an Aquarea Heat Pumps.
Sales information Sales information 2 Operational Manual Installation manual IU Dimensions Installation Tips
| Unit Technical Data | Model Number | ||||
| P-FAL10 | P-FAL20 | P-FAL30 | P-FAL35 | P-FAL40 | |
| Fan Speed | Min-Max | Min-Max | Min-Max | Min-Max | Min-Max |
| Total Cooling Capacity (W) | 0.43 -0.91 | 0.75 - 2.12 | 1.15 - 2.81 | 1.32 - 3.30 | 1.36 - 3.71 |
| Water Flow Cooling (l/h) | 73 - 155 | 128 - 363 | 197 - 481 | 226 - 565 | |
| Water Pressure Drop Cooling (kPa) | 5.7 - 12.1 | 1.9 - 8.2 | 2.7 - 17.1 | 2.5 - 18 | |
| Total Heating Capacity (W) | 0.37 - 0.69 | 0.82 - 1.50 | 1.19 - 2.99 | 1.45 - 3.73 | 1.47 - 4.23 |
| Water Flow Heating (l/h) | 65 - 179 | 144 - 389 | 211 - 532 | 259 - 671 | |
| Water Pressure Drop Heating (kPa) | 2.6 - 9.1 | 1.5 - 9.2 | 2.7 - 19.1 | 3.0 - 21.2 | |
| Air Flow (m³/hr) | 49 - 146 | 124 - 294 | 194 - 438 | 302 - 567 | 364 - 663 |
| Consumption (w) | 7 - 13 | 14 - 22 | 16 - 24 | 18 - 26.5 | |
| Sound Pressure Level (dBA) | 24 - 41 | 25 - 42 | 26 - 44 | 26 - 46 | 28 - 47 |
| Inlet/Outlet Water Temp Cooling | 12/7 | ||||
| Inlet/Outlet Water Temp Heating | 45/40 | ||||
| Height (mm) | 580 | ||||
| Width (mm) | 680 | 880 | 1080 | 1280 | 1480 |
| Depth (mm) | 119 | 119 | 119 | 119 | 119 |
| Weight (kG) | 13 | 16 | 18 | 20 | 23 |
| Connections Type (Inch) | Eurokonus 3/4 | ||||
| 3 Way Valves Included? | Model Dependent | ||||
| Touch Screen Thermostat? | Optional | ||||
On-Board HLE Models come with controller as standard
Wall Mounted Control RLE Models require optional PCZ-EFB749 Wi-Fi Controller or PCZ-EFB749 Modbus Controller (ideal for Smart Homes)
Product Description
The slimline Panasonic Aquarea Air radiators deliver high efficiency climate control. With a depth of just under 13 cm they are at the cutting edge of the market. Blending easily into the home, Aquarea Air’s elegant design and product refinements are clear to see in every detail.
The Aquarea Air’s slimline profile has been achieved thanks to the innovative layout of the ventilation unit and the heat exchanger. The fan is tangential with asymmetric blades and the large surface heat exchanger enables high airflows to be achieved with low pressure loss and low noise levels. Exceptional ventilation efficiency means the motor uses considerably less energy (low wattage). The fan speed is continuously
modulated by the temperature controller with proportional integral logic, with undoubted advantages for regulating the temperature and humidity in summer mode.
Features and Benefits
- Sophisticated and slim (119mm) design, with an elegant metal body
- Optional PCZ-EEB749 Modbus Controller (cannot be used in conjunction with EFB749)
- Self-modulated air flow control by the unit (PI logic) and brushless DC fan motor with Inverter.
- Versatile with a range of installation options.
- Vertical Installation as standard
- Horizontal Installation optional with PCZ-GB*** Drip Tray
- Left Hand Connection as standard
- Right Hand optional
- 3 Way Valve for Cooling or Heating as standard
- 2 Way Valve optional
- WiFI or Modbus optional Controls
- Wide range of control options, including on-board or wall-mounted controls.
- Slim chassis profile, only 119 mm
- DC Inverter – maximising comfort and energy savings
- Modulated air flow
- Possible configurations:
- Left or right water connections
- 2 or 3 way valves as accessories
- On-board or wall mounted control or PCB for analog input (0-10 V)
Unit Selection Notes
Standard Configurations
HLE Models – Left Handed Piping as standard, Vertical Installation, built-in 3 Way Valve for Cooling and Heating, on-board display
RLE Models – Left Handed Piping as standard, Vertical Installation, built-in 3 Way Valve for Cooling and Heating, on-board display
Configurable Models – Base Unit
SC-OOE Models – Left Handed Piping as standard, configurable with below options
SC-ODC Models – Right Handed Piping as standard, configurable with below options
Configurable options for above
On-board display with Modbus (PCZ-ECA844)
On-board display with configurable Wi-Fi (PCZ-EQA844)
Wall Mounted Control with Modbus (PCZ-ESE845 Controller and PCZ-EEB749 On-Board Display)
Wall Mounted Control with configurable Wi-Fi (PCZ-ESE845 Controller and PCZ-EFB749 On-Board Display)
Optional 2 Way Valve Kits for Heating/Cooling only (PCZ-20139)
Optional 3 Way Valve Kits for Heating and/or Cooling (PCZ-V30720)
Optional Condensate Drip Trays for Horizontal Installation (PCZ-GB052* – see Sales Literature for correct model option)
Optional Feet for anchoring Vertical unit to floor (PCZ-LC0606)
Optional Feet for floor pipe cover (PCZ-LC0158)
