MSZ-RZ Premium Plus R290 Wall Mount (2.5 – 3.5kW)
Enquire Now

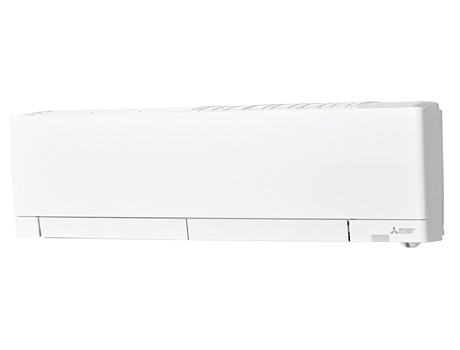

MSZ-RZ Premium Plus R290 Wall Mounted System (2.50 – 3.50kW)
The MSZ-RZ range blends low GWP refrigerant, with a high heating performance efficiency in low outdoor
temperatures. Excellent air purifying functions and many other smart features makes it an excellent choice.
Sales information Operational Manual Service manuals Installation manual IU Dimensions OU Dimensions Installation Tips
Product video
These models offer industry leading noise levels as low as 18dBA and have a distinctively styled front panel that not only looks appealing, but also helps to make cleaning of the unit easier
| Model Reference | Nom. Cool (kW) | Nom. Heat (kW) | Max Pipe (m) | EuP Lot 10 Energy Rating | Fuse Rating (Amps) | Pipe Size Gas | Pipe Size Liquid | Electrical Supply | WiFi Control |
||
| Indoor Unit | Outdoor Unit | SCOP | SEER | ||||||||
| MSZ-RZ25VU | MUZ-RZ25VU | 2.50 | 3.20 | 20 | 5.30 | 11.70 | 10 | 3/8 | 1/4 | Single | Included |
| MSZ-RZ25VU | MUZ-RZ35VU | 3.50 | 4.00 | 20 | 5.20 | 9.60 | 10 | 3/8 | 1/4 | Single | Included |
Inclusive of Infra-Red Controller with 7 day timeclock.
Includes MelCloud Wifi as standard
Feature and Benefits
- Built in Plasma quad technology neutralises viruses, bacteria, allergens, PM2.5 mould and dust, inhibiting 99.8% of SARS-CoV-2*
- 3D i-see sensor provides energy efficient, customised comfort by automatically monitoring room occupancy position and body temperatures
- Built in Wi-Fi interface enables system control & monitoring via the Mitsubishi Electric MELCloud app
- Excellent heating performance delivers warmth to your room at low ambient outdoor temperatures
- ‘Circulator’ mode to automatically circulate the air and eliminate cold spots
- User-friendly backlit controller for remote operation, including scheduling options
Advanced Technical Data
Indoor Units
| Indoor Unit Technical Data | Model Reference | |
| MSZ-RZ25VU | MSZ-RZ35VU | |
| Cooling (kW) - Nominal | 2.50 (0.90 - 3.50) | 3.50 (1.00 - 4.00) |
| Heating (kW) - Nominal | 3.20 (0.80 - 5.40) | 4.00 (1.10 - 6.30) |
| Cooling (kW) - Max UK Condition | 3.50 | 4.00 |
| Heating (kW) - Max UK Condition | 4.43 | 6.17 |
| SHF (nominal & UK) | 1.00 | 0.92 |
| Sound Pressure - Cooling (dBA) | 19-42 | 19-43 |
| Sound Pressure - Heating (dBA) | 19-41 | 19-42 |
| Height (mm) | 305 | 305 |
| Width (mm) | 998 | 998 |
| Depth (mm) | 247 | 247 |
| Weight (kG) | 14.40 | 14.40 |
| Air Flow - (l/sec) Cooling | 85-108-150-175-195 | 85-115-150-192-235 |
| Air Flow - (l/sec) Heating | 85-130-158-195-235 | 85-130-158-195-255 |
Outdoor Units
| Outdoor Unit Technical Data | ||
| MUZ-RZ25VU | MUZ-RZ35VU | |
| Height (mm) | 714 | 714 |
| Width (mm) | 800 | 800 |
| Depth (mm) | 285 | 285 |
| Weight (kG) | 37.5 | 39.5 |
| Sound Pressure - Heat/Cool (dBA) | 49/46 | 50/49 |
| Liquid (mm(inches)) | 6.35 (1/4) | 6.35 (1/4) |
| Gas (mm(inches)) | 9.52 (3/8) | 9.52 (3/8) |
| Max Pipe Run | 20 | |
| Max Pipe Lift | 12 | |
| Pre-charged to (m) | 10 | |
| Standing Charge (kG) | 0.39 | |
| Additional grams per metre | 0.10 | |
| Refrigerant | R290 | |
| Phase | Single | |
| Power Supply to | Outdoor | |
| Max Running Current (A) | 9.80 | 9.90 |
| Fuse Rating (A) | 10 | 10 |
| Interconnecting | 3C + E | |
| System Power Input (Heat/Cool) - kW | 0.58 / 0.45 | 0.81 / 0.77 |
