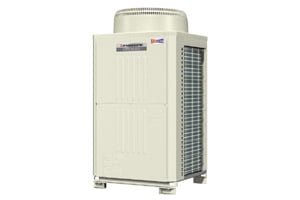

Y Series Replace Multi (8-36HP) 2 Pipe Heat Pump
Enquire Now
| Model Reference | Nom. Cool (kW) | Nom. Heat (kW) | Fuse Rating (Amps) | Pipe Size Gas | Pipe Size Liquid | Electrical Supply |
|
| Indoor Unit | Outdoor Unit | ||||||
| Max 17 FC | PUHY-RP200YJM-B | 22.40 | 25.00 | 20 | Three | ||
| Max 21 FC | PUHY-RP250YJM-B | 28.00 | 31.50 | 20 | Three | ||
| Max 26 FC | PUHY-RP300YJM-B | 33.50 | 37.50 | 25 | Three | ||
| Max 30 FC | PUHY-RP350YJM-B | 40.00 | 45.00 | 32 | Three | ||
| Max 32 FC | PUHY-RP400YSJM-A/B | 45.00 | 50.00 | 20 / 20 | Three | ||
| Max 32 FC | PUHY-RP450YSJM-A/B | 50.00 | 56.00 | 20 / 20 | Three | ||
| Max 32 FC | PUHY-RP500YSJM-A/B | 56.00 | 63.00 | 20 / 20 | Three | ||
| Max 32 FC | PUHY-RP550YSJM-A/B | 63.00 | 69.00 | 25 / 20 | Three | ||
| Max 32 FC | PUHY-RP600YSJM-A/B | 69.00 | 76.50 | 25 / 25 | Three | ||
| Max 32 FC | PUHY-RP650YSJM-A/B | 73.00 | 81.50 | 32 / 25 | Three | ||
| Max 32 FC | PUHY-RP700YSJM-A/B | 80.00 | 88.00 | 20 / 20 / 20 | Three | ||
| Max 32 FC | PUHY-RP750YSJM-A/B | 85.00 | 95.00 | 20 / 20 / 20 | Three | ||
| Max 32 FC | PUHY-RP800YSJM-A/B | 90.00 | 100.00 | 25 / 20 / 20 | Three | ||
| Max 32 FC | PUHY-RP850YSJM-A/B | 96.00 | 108.00 | 25 / 25 / 20 | Three | ||
| Max 32 FC | PUHY-RP900YSJM-A/B | 101.00 | 113.00 | 25 / 25 / 25 | Three | ||
