Vertical Hybrid HBC Controllers

Enquire Now

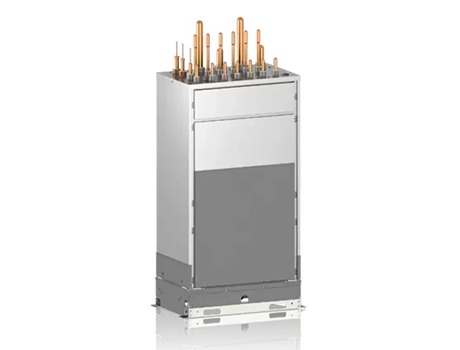

Vertical HBC Controllers (HVRF)

City Multi Hybrid VRF is an energy-efficient 2-pipe heat recovery VRF system, whereby the outdoor unit is connected to a Hybrid Branch
Controller (HBC) and water pipework is used between the indoor unit & HBC.
With the refrigerant layout reduced, this revolutionary design minimises the need for leak detection and provides simultaneous heating and cooling to the occupied space.

Features and Benefits

  • The vertical HBC’s reduced footprint enables easier installation and service access
  • Where ceiling space is tight or congested, the compact vertical HBC can be considered as an alternative to the traditional horizontal type HBC box
  • Valves, pumps and heat exchangers all contained within the HBC
  • Manageable phased installation through modular system design
  • Cat A to Cat B is simple through HBC system design
  • Flexibility of installation, example Master + Master or Master + Slave configurations
  • Intuitive load adjusting flow control valves, inverter driven pumps and heat recovery for maximum efficiency

Master HBC Boxes

Model Reference
Height
(mm)

Width
(mm)

Depth
(mm)

Fuse Rating

No. of
Connections

Weight
(kG)

Electrical Supply
Accessory
CMB-WM350F-AA1500800500106196 (216)*Single
CMB-WM500F-AA1500800500106209 (233)*Single

Please contact Logicool with regards to combinations, flexibility and connectivity. Logicool can prepare full project schematics. PLEASE DO NOT MAKE ASSUMPTIONS REGARDING THE SELECTION OF THESE PRODUCTS WITHOUT CONFIRMING WITH A SCHEMATIC ISSUED BY LOGICOOL

Notes:
CMB-WM-V-AA (Main) and CMB-WM-V-BB (Sub) units are for use with PURY-(E)M200-500YNW-A1, PQRY-P200-500YLM-A1 outdoor/condenser units and HVRF indoor units only. CMB-WM-F-AA (Main) and CMB-WM-V-BB (Sub) units are for use with PURY-(E)M200-500YNW-A1 outdoor units and HVRF indoor units only.
One CMB-WM-V-AA unit can be used on PURY-(E)M200-250YNW-A1 and PQRY-P200-250YNW-A1 units. One CMB-WM-V-AA unit can be used on PURY-(E)M300-350YNW-A1 and PQRY-P300-350YLM-A1 units with a system efficiency reduction.
Two CMB-WM-V-AA units can be used in parallel on PURY-(E)M300-500YNW-A1 and PQRY-P300-500YLM-A1 outdoor/condenser units. PURY-(E)M400-500YNW-A1 requires two CMB-WM-V-AA units.
One CMB-WM-F-AA can only be used on PURY-(E)M200-500YNW-A1 outdoor units.
A CMB-WM-V-AA and a CMB-WM-F-AA cannot be connected to the same R32 outdoor unit.
CMB-WM-V-BB units are for use with PURY-(E)M200-500YNW-A1, PQRY-P200-500YLM-A1 outdoor/condenser units and HVRF indoor units only, when accompanied by a CMB-WM-V-AA or CMB-WM-F-AA unit.
*( ) Includes Water
