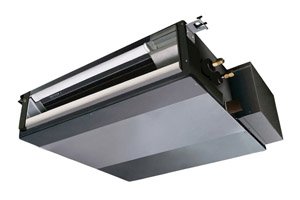

PEAD-RP Ceiling Concealed Ducted
Enquire Now
Model Reference | MXZ Compatible? | Mr. Slim Twin - Quad Compatible? | Nom. Cool (kW) | Nom. Heat (kW) | Max Pipe (m) | Indoor Unit Pipe Sizing (Check Outdoor Connection) | Indoor Fuse (Amps) | Electrical Supply |
|
| Indoor Unit | Gas | Liquid | |||||||
| PEAD-RP35JAQ | Yes | Yes | 3.60 | 4.10 | Refer to Outdoor Unit Tables | 1/2 | 1/4 | 6 | Single |
| PEAD-RP50JAQ | Yes | Yes | 5.00 | 6.00 | 1/2 | 1/4 | 6 | Single | |
| PEAD-RP60JAQ | Yes | Yes | 6.00 | 7.00 | 5/8 | 3/8 | 6 | Single | |
| PEAD-RP71JAQ | Yes | Yes | 7.10 | 8.00 | 5/8 | 3/8 | 6 | Single | |
| PEAD-RP100JAQ | No | Twin Only | 10.00 | 11.20 | 5/8 | 3/8 | 6 | Single | |
| PEAD-RP125JAQ | No | Twin Only | 12.50 | 14.00 | 5/8 | 3/8 | 6 | Single | |
| PEAD-RP140JAQ | No | No | 14.00 | 16.00 | 5/8 | 3/8 | 6 | Single | |
| PEA-RP200GAQ | No | No | 19.00 | 22.40 | 1 1/8 | 3/8 | 6 | Single | |
| PEA-RP250GAQ | No | No | 22.00 | 27.00 | 1 1/8 | 1/2 | 6 | Single | |
| PEA-RP400GAQ | No | No | 38.00 | 44.80 | 1 1/8 (x 2) | 3/8 (x 2) | 10 | Single | |
| PEA-RP500GAQ | No | No | 44.00 | 54.00 | 1 1/8 (x 2) | 1/2 (x 2) | 10 | Single | |
