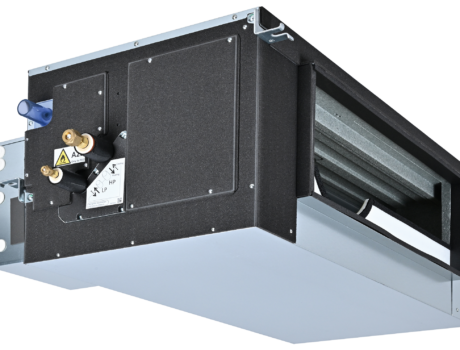

GUX-MS Lossnay DX HX
Enquire Now
Designed to work seamlessly with City Multi YXM VRF and the Lossnay RVX(T)3 MVHR ranges, the GUX-MS delivers treated outdoor air with confidence.
The DX coil provides heated or cooled fresh air into commercial applications improving comfort, simplifying design and giving installers and specifiers the reassurance of one trusted Mitsubishi Electric system.
Minimum airflow speed setting required. This changes model by model. Please speak to Logicool for system advice.
Operates with PAR-42MAA Controller (supplied separately)
| Model Reference | Nom. Cool (kW) | Nom. Heat (kW) | Coil Operational Airflow Range (l/sec) | Vent Airflow Range (l/sec) | Fuse Rating (Amps) | Pipe Size Gas | Pipe Size Liquid | Electrical Supply |
| Indoor Unit | ||||||||
| GUX-MS32-E | 2.80 | 3.20 | 97-222 | 67-222 | 6 A | 1/2 | 1/4 | Single |
| GUX-MS50-E | 4.50 | 5.00 | 144-322 | 67-322 | 6 A | 1/2 | 1/4 | Single |
| GUX-MS80-E | 7.10 | 8.00 | 222-625 | 67-625 | 6 A | 5/8 | 3/8 | Single |
| GUX-MS100-E | 11.20 | 12.50 | 222-778 | 67-778 | 6 A | 5/8 | 3/8 | Single |
Features and Benefits
- Seamless Air Treatment System – GUX units connect with City Multi YXM and Lossnay RVX(T)3 ranges to deliver a simple, effective solution for heated or cooled fresh air supply
- Lower GWP R32 Refrigerant – for reduced carbon impact and future-ready legislation compliance
- Optional Low Level Leak Detector (PAC-SL72SA-E) – Provides long service life, easy maintenance and supports compliance and safety regulations
- Wide Airflow Capability (500–2500 m³/h) – Delivers high airflow without the size, weight, or installation demands of
traditional AHUs, enabling solutions where space is limited - Flexible Air Control – Supports return air temperature control with or without supply air temperature limit capabilities, enabling the right approach for each building while maintaining occupant comfort
- Outdoor Air Temperature Conditioning – Provides greater control of incoming fresh air temperature, improving comfort and supporting flexible system design
