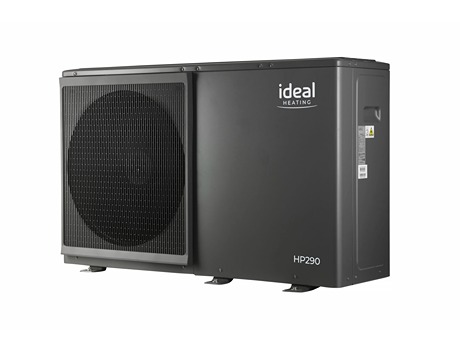

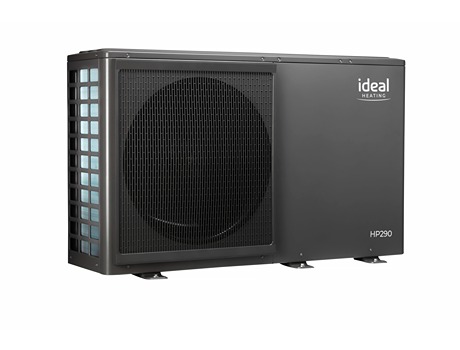

Ideal HP290
Enquire Now
The HP290 heat pump has been designed specifically for the UK climate, ensuring efficient heating and hot water throughout the year. Our monobloc technology enables easy installation and servicing to deliver simple and reliable low-carbon heating.
Features
- Intuitive control: smart weather compensating controls
- Low Carbon R290 refrigerant
- High temperature output
- Flow temperatures up to 75°C
- Smart grid and solar PV compatible
- Compatibility: radiator and underfloor heating systems
| PRODUCT CODE | DESCRIPTION | Rated Heat Output (kW) | Power Supply (Fuse A) | DNO Status | DNO Registration Number | MCS Approved? | Water Connection Size | |||||
| Air to Water Outdoor Unit | A-7/W35 | A2 /W35 | A7/W35 | A-7/W55 | A2 /W55 | A7/W55 | ||||||
| LOGIC-290-MB-4KW | 241486 Ideal Heating HP290 Monobloc 4.5Kw Plus Couplings | 4.5 | 4.4 | 4.6 | 4.7 | 4.6 | 4.6 | 20 | Connect & Notify | IDEAL/10018/V1/A2 | YES | 1" BSP M |
| LOGIC-290-MB-6KW | 241487 Ideal Heating HP290 Monobloc 6Kw Plus Couplings | 5.9 | 5.6 | 6.2 | 5.02 | 5.28 | 6.2 | 20 | Connect & Notify | IDEAL/10019/V1/A2 | YES | 1" BSP M |
| LOGIC-290-MB-8KW | 241488 Ideal Heating HP290 Monobloc 8Kw Plus Couplings | 8.0 | 8.2 | 9.5 | 7.4 | 8.2 | 9.5 | 25 | Connect & Notify | IDEAL/10020/V1/A3 | YES | 1.1/4" BSP M |
| LOGIC-290-MB-10KW | 241489 Ideal Heating HP290 Monobloc 10Kw Plus Couplings | 10 | 9.1 | 12 | 10.4 | 11.3 | 12 | 32 | Connect & Notify | IDEAL/10021/V1/A3 | YES | 1.1/4" BSP M |
| LOGIC-290-MB-12KW | 241490 Ideal Heating HP290 Monobloc 12Kw Plus Couplings | 11.5 | 10.3 | 14 | 11.3 | 12 | 14 | 32 | Connect & Notify | IDEAL/10022/V1/A3 | YES | 1.1/4" BSP M |
| LOGIC-290-MB-14KW | 241491 Ideal Heating HP290 Monobloc 14Kw Plus Couplings | 12.7 | 12.8 | 15 | 12.4 | 13.1 | 15 | 32 | Connect & Notify | IDEAL/10023/V1/A3 | YES | 1.1/4" BSP M |
