Heat Pump cylinders
Hot water cylinders from the UK’s leading manufacturer of central heating systems. Complete your install in style with Ideal’s dependable unvented cylinders, complete with a 25 year warranty and available in sizes up to 400 litres. Made from stainless steel and manufactured to the highest standards, their range of hot water cylinders are designed to perfectly complement the Ideal Logic Air & HP290 Air Source Heat Pumps.

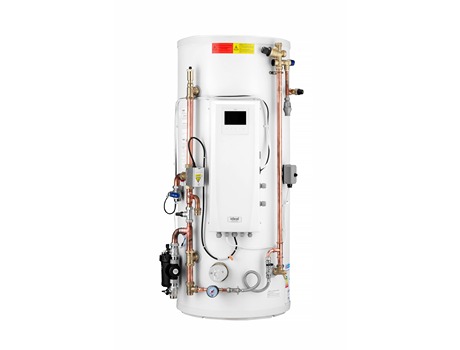

| SINGLE HEATING ZONE | DHW CYL PP150 CBOX 1Z SL | DHW CYL PP180 CBOX 1Z SL | DHW CYL PP150 CBOX 1Z | DHW CYL PP180 CBOX 1Z | |
| LOGIC AIR R32 Cylinder Code | LOGIC-32-PP150-1Z-SL | LOGIC-32-PP180-1Z-SL | LOGIC-32-PP150-1Z | LOGIC-32-PP180-1Z | |
| HP290 Cylinder Code | 240127 | 240128 | 240122 | 240123 | |
| Energy Efficiency Class | Erp | B | C | B | C |
| Heat Loss | Watts/h | 50 | 58 | 44 | 49 |
| Capacity | Litres | 145 | 169 | 148 | 170 |
| Weighty Empty | kg | 46 | 53 | 44 | 49 |
| Weight Full | kg | 192 | 222 | 192 | 219 |
| Overall Width | mm | 581 | 581 | 636 | 636 |
| Overall Height | mm | 1598 | 1870 | 1196 | 1384 |
| Overall Depth | mm | 606 | 606 | 683 | 683 |
| Coil Area | m² | 1.8 | 3.0 | 1.6 | 2.5 |
| Reheat Time 10°C to 50°C | min | 22.26 | 21.81 | 22.56 | 22.56 |
| Immersion Heater | kW | 3 | 3 | 3 | 3 |

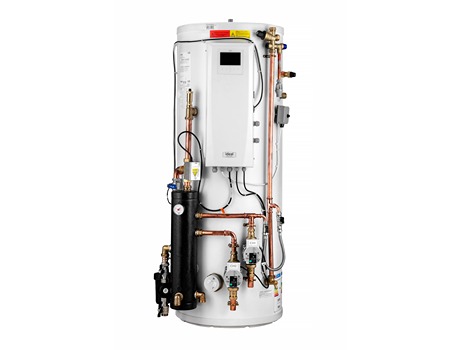

| TWO HEATING ZONES | DHW CYL PP210 CBOX LL 2Z SL | DHW CYL PP210 CBOX LL 2Z SL | DHW CYL PP250 CBOX LL 2Z | DHW CYL PP300 CBOX LL 2Z | |
| LOGIC AIR R32 Cylinder Code | LOGIC-32-PP210-2Z-SL | LOGIC-32-PP210-2Z-SL | LOGIC-32-PP250-2Z | LOGIC-32-PP300-2Z | |
| HP290 Cylinder Code | 240129 | 240124 | 240125 | 240126 | |
| Energy Efficiency Class | Erp | C | B | C | C |
| Heat Loss | Watts/h | 65 | 55 | 63 | 72 |
| Capacity | Litres | 188 | 199 | 237 | 279 |
| Weighty Empty | kg | 60.6 | 64 | 69.8 | 73.4 |
| Weight Full | kg | 248.9 | 262.8 | 307 | 352.4 |
| Overall Width | mm | 647 | 704 | 704 | 704 |
| Overall Height | mm | 2042 | 1572 | 1822 | 2068 |
| Overall Depth | mm | 620 | 686 | 686 | 686 |
| Coil Area | m² | 2.5 | 2.5 | 3 | 3 |
| Reheat Time 10°C to 50°C | min | 23.68 | 30.6 | 27.34 | 35.05 |
| Immersion Heater | kW | 3 | 3 | 3 | 3 |
| ONE HEATING ZONE c/w BUFFER | DHW CYL PP180 CBOX BUFF 1Z | DHW CYL PP210 CBOX BUFF 1Z | DHW CYL PP250 CBOX BUFF 1Z | DHW CYL PP300 CBOX BUFF 1Z | |
| LOGIC AIR R32 Cylinder Code | 236206 | 236208 | 236210 | 236212 | |
| HP290 Cylinder Code | 240130 | 240132 | 240134 | 240136 | |
| Energy Efficiency Class | Erp | B | B | B | B |
| Heat Loss | Watts/h | 49 | 55 | 62 | 68 |
| Capacity | Litres | 171 | 199 | 239 | 287 |
| Weighty Empty | kg | 64.6 | 68.6 | 77 | 87 |
| Weight Full | kg | 305.6 | 337.4 | 379 | 437.5 |
| Overall Width | mm | 644 | 644 | 705 | 705 |
| Overall Height | mm | 1907 | 2095 | 1908 | 2128 |
| Overall Depth | mm | 702 | 702 | 780 | 780 |
| Coil Area | m² | 2.5 | 2.5 | 2.5 | 3 |
| Reheat Time 10°C to 50°C | min | 22.17 | 32.71 | 26.56 | 44.09 |
| Immersion Heater | kW | 3 | 3 | 3 | 3 |
| TWO HEATING ZONE c/w BUFFER | DHW CYL PP180 CBOX BUFF 2Z | DHW CYL PP210 CBOX BUFF 2Z | DHW CYL PP250 CBOX BUFF 2Z | DHW CYL PP300 CBOX BUFF 2Z | |
| LOGIC AIR R32 Cylinder Code | 236207 | 236209 | 236211 | 236213 | |
| HP290 Cylinder Code | 240131 | 240133 | 240135 | 240137 | |
| Energy Efficiency Class | Erp | B | B | B | B |
| Heat Loss | Watts/h | 49 | 55 | 62 | 68 |
| Capacity | Litres | 171 | 199 | 239 | 287 |
| Weighty Empty | kg | 68 | 71.8 | 80 | 90.2 |
| Weight Full | kg | 309 | 340.6 | 382 | 439.7 |
| Overall Width | mm | 644 | 644 | 705 | 705 |
| Overall Height | mm | 1907 | 2095 | 1908 | 2128 |
| Overall Depth | mm | 702 | 702 | 780 | 780 |
| Coil Area | m² | 2.5 | 2.5 | 2.5 | 3 |
| Reheat Time 10°C to 50°C | min | 22.17 | 32.71 | 26.56 | 44.09 |
| Immersion Heater | kW | 3 | 3 | 3 | 3 |
