2-Pipe ECOi R32 MZ1 Series
Enquire Now
The ECOi Series with R32 refrigerant has been expanded to minimise the environmental impact of VRF systems for the decarbonised buildings.
Advanced R32 technology and optimised design make it a more sustainable alternative to R410A.
With lower GWP and superior efficiency, it ensures sustainability throughout its lifetime.
New generation of 2-Pipe ECOi EX MZ1 Series R32
Extreme efficiency, quality, compact.
Panasonic provides safety measure compliant with the latest standards, as required based
on R32 refrigerant density under specific project conditions. Everything necessary for R32
refrigerant safety is prepared by Panasonic.
| Model Reference | Nom. Cool / Heat (kW) | Max Pipe (m) | Fuse (Amps) | Pipe Gas | Pipe Liquid | Electrical Supply |
|
| Connectivity | Outdoor Unit | ||||||
| Max x FC, 130% | U-8MZ1E8 | 22.40 / 25.00 | 1000 | 20 | Please consult Logicool/Schematics as sizes can change depending on combinations and pipe lengths | Three | |

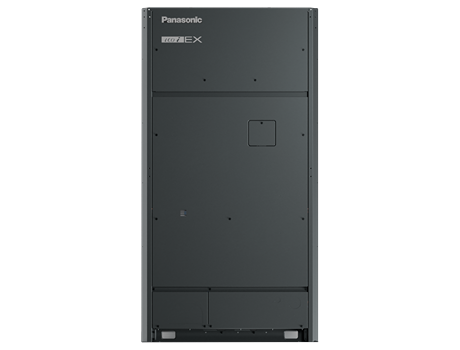

| Max x FC, 130% | U-10MZ1E8 | 28.00 / 31.50 | 1000 | 25 | Three | ||
| Max x FC, 130% | U-12MZ1E8 | 33.50 / 37.50 | 1000 | 32 | Three | ||
Features and Benefits
- Up to 200% connectivity / diversity (when designed correctly)
- AHU Compatibility via PAC-MAH4 only
- Wide operation range from -25 °C in heating to +52 °C in cooling.
- Constant heating capacity to -5°C
- R32 Refrigerant
- Up to 500m (one direction) piping length
- Indoor units with built-in Leak Detection
- Intelligent 3-stage oil management system
- Bluefin Coil Treatment as standard
- Everything necessary for R32 refrigerant safety is prepared by Panasonic
- The new MZ1 Series uses only 57%* of the R32 refrigerant compared to the R410A equivalent
- Sound pressure levels can be reduced to as low as 54dBA
- P-Smart Edge Compatible
