RAM Multi Outdoor R32
Enquire Now
Connect up to six indoor units to a single outdoor unit. The Hitachi R32 Multizone is the ideal solution for homes, shops, small offices and hotels where you need climate control in multiple spaces.
Compatible with a wide range of Hitachi RAC Indoor Units.
Features and Benefits
Our Multi System allows you to mix and match Hitachi RAC Monozone Indoor Units, letting you choose the best option for the space: wall mounted, floor standing, ducted or cassette.
When it’s cooler outside, the heat pump system delivers low-energy heating with minimal maintenance. In milder climates, it can even replace alternative heating systems.
To complement the system, the Hitachi Hi-Kumo WiFi app turns your smartphone into a programmable remote control. Use the app to turn units on or off, adjust the temperature and fan speed, and set custom schedules.
| Model Reference | Nom. Cool (kW) | Nom. Heat (kW) | Max Pipe (m) | EuP Lot 10 Energy Rating | Fuse (Amps) | Pipe Sizes | Pipe Max Per Leg (m) | Electrical Supply |
||
| Combinations | Outdoor Unit | SCOP | SEER | |||||||
| 2 min, 2 max | RAM-33NP2E | 3.30 | 4.00 | 20 | 4.30 | 6.30 | 16 | As per Indoor. Check configuration with install manual | 25 | Single |
| 2 min, 2 max | RAM-40NP2E | 4.00 | 5.20 | 35 | 4.33 | 7.00 | 16 | 25 | Single | |
| 2 min, 2 max | RAM-53NP2E | 5.30 | 6.80 | 35 | 4.31 | 7.15 | 20 | 25 | Single | |
| 2 min, 3 max | RAM-53NP3E | 5.30 | 6.80 | 45 | 4.31 | 7.15 | 20 | 25 | Single | |
| 2 min, 3 max | RAM-68NP3E | 6.80 | 8.50 | 60 | 4.20 | 6.60 | 20 | 25 | Single | |
| 2 min, 4 max | RAM-70NP4E | 7.00 | 8.50 | 60 | 4.20 | 6.30 | 20 | 25 | Single | |
| 2 min, 5 max | RAM-90NP5E | 8.50 | 11.00 | 75 | 4.20 | 6.50 | 25 | 25 | Single | |
| 2 min, 5 max | RAM-110NP5E | 10.60 | 14.40 | 42 | 4.20 | 6.30 | 25 | 25 | Single | |

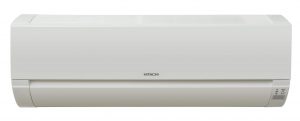

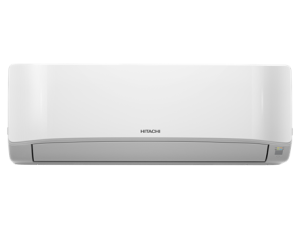

Compatible Indoor Units
POWER/WIRING: Power supply to Outdoor Unit with 3C + E interconnecting cable.
