The Aquarea MDC range adapts well in an existing installation with a boiler backup, and in a new application with underfloor heating, low temperature radiators or even fan-coil heaters.
Model Reference | Rated Heat Output (kW) | System COP | Electric Heater Cap (kW) | Fuse (Amps) | Electrical Supply |
|||||
HWC | Outdoor Unit | A-7/W35 | A2 /W35 | A7/W35 | A-7/W35 | A2 /W35 | A7/W35 | |||
Field Supply/ Panasonic | WH-MDC05H3E5 | 4.50 | 4.80 | 5.00 | 2.98 | 3.75 | 5.08 | 3 | 30 / 15 | Single |
WH-MDC07H3E5 | 5.15 | 5.00 | 6.00 | 2.68 | 3.45 | 4.46 | 3 | 30 / 16 | Single | |
WH-MDC09H3E5 | 7.70 | 7.45 | 9.00 | 2.12 | 3.14 | 4.15 | 3 | 30 / 16 | Single | |
WH-MDC12H6E5 | 10.00 | 11.40 | 12.00 | 2.73 | 3.44 | 4.74 | 6 | 30 / 30 | Single | |
WH-MDC16H6E5 | 11.40 | 13.00 | 16.00 | 2.68 | 3.28 | 4.28 | 6 | 30 / 30 | Single |
This range can also be connected to a solar kit in order to increase efficiency and minimise the impact on the ecosystem. Finally, it is possible to connect a thermostat for even better heating and cooling control and management.
Whatever the weather, Aquarea can work even at -20°C. The Mono-bloc is easy to install in new and existing residential properties.
Technical Focus
Advanced Technical
Model Reference | Single Phase Heating and Cooling | ||||||
Outdoor Unit | WH-MDC05F3E5 | WH-MDC06G3E5 | WH-MDC09G3E5 | WH-MDC12G6E5 | WH-MDC16G6E5 | ||
Heating capacity at +7°C (heating water at 35°C) | kW | 5,00 | 6,00 | 9,00 | 12,00 | 16,00 | |
COP at +7°C (heating water at 35°C) | W/W | 5,08 | 4,46 | 4,15 | 4,74 | 4,28 | |
Heating capacity at +2°C (heating water at 35°C) | kW | 4,80 | 5,00 | 7,45 | 11,40 | 13,00 | |
COP at +2°C (heating water at 35°C) | W/W | 3,75 | 3,45 | 3,14 | 3,44 | 3,28 | |
Heating capacity at -7°C (heating water at 35°C) | kW | 4,50 | 5,15 | 7,70 | 10,00 | 11,40 | |
COP at -7°C (heating water at 35°C) | W/W | 2,98 | 2,68 | 2,12 | 2,73 | 2,68 | |
Cooling capacity at 35°C (cooling water at 7°C) | kW | 4,50 | 5,50 | 7,00 | 10,00 | 12,20 | |
EER at 35°C (cooling water at 7°C) | W/W | 3,33 | 2,74 | 2,44 | 2,81 | 2,56 | |
Energy Efficiency Class at 35°C | A++ | A++ | A++ | A++ | A++ | ||
Energy Efficiency Class at 55°C | A++ | A++ | A++ | A++ | A++ | ||
Sound pressure | Heating / Cooling | dB(A) | 49 / 47 | 49 / 47 | 51 / 49 | 52 / 50 | 55 / 54 |
Sound power level | Heating / Cooling | dB | 65 / 65 | 65 / 65 | 69 / 67 | 69 / 68 | 72 / 72 |
Dimensions | H x W x D | mm | 865 x 1.283 x 320 | 865 x 1.283 x 320 | 865 x 1.283 x 320 | 1.410 x 1.283 x 320 | 1.410 x 1.283 x 320 |
Weight | kg | 107 | 112 | 112 | 147 | 147 | |
Refrigerant (R410A)¹ | kg / TCO2 Eq. | 1,42 / 2,965 | 1,45 / 3,028 | 1,45 / 3,028 | 2,10 / 4,385 | 2,10 / 4,385 | |
Water pipe connector | R 1 ¼ | R 1 ¼ | R 1 ¼ | R 1 ¼ | R 1 ¼ | ||
Pump | Number of speeds | 7 | 7 | 7 | 7 | 7 | |
Input power (Min / Max) | W | 34 / 96 | 36 / 100 | 39 / 108 | 34 / 110 | 38 / 120 | |
Heating water flow (?T=5 K. 35°C) | l/min | 14,3 | 17,2 | 25,8 | 34,4 | 45,9 | |
Capacity of integrated electric heater | kW | 3 | 3 | 3 | 6 | 6 | |
Input Power | Heating | kW | 0,985 | 1,34 | 2,17 | 2,53 | 3,74 |
Cooling | kW | 1,35 | 2,01 | 2,87 | 3,56 | 4,76 | |
Running and Starting current | Heating | A | 4,5 | 6,1 | 9,9 | 11,7 | 17,3 |
Cooling | A | 6,1 | 9,3 | 13,0 | 16,5 | 22,0 | |
Current 1 | A | 19,5 | 20,5 | 22,9 | 24,0 | 26,0 | |
Current 2 | A | 13,0 | 13,0 | 13,0 | 26,0 | 26,0 | |
Recommended Fuse | A | 30 / 15 | 30 / 16 | 30 / 30 | 30 / 30 | ||
Recommended cable size, supply 1 & 2 | mm² | 3 x 4,0 or 6,0 / 3 x 4,0 | 3 x 4,0 or 6,0 / 3 x 4,0 | 3 x 4,0 or 6,0 / 3 x 4,0 | 3 x 4,0 or 6,0 / 3 x 4,0 | 3 x 4,0 or 6,0 / 3 x 4,0 | |
Operation range | Outdoor ambient | °C | -20 ~ +35 | -20 ~ +35 | -20 ~ +35 | -20 ~ +35 | -20 ~ +35 |
Water outlet | Heating | °C | 20 ~ 55 | 20 ~ 55 | 20 ~ 55 | 25 ~ 55 | 25 ~ 55 |
Cooling | °C | 5 ~ 20 | 5 ~ 20 | 5 ~ 20 | 5 ~ 20 | 5 ~ 20 |
Accessories
Accessories | Description | ||
PAW-TD20C1E5 | Tank 200L - Stainless steel | ||
PAW-TD30C1E5 | Tank 300L - Stainless steel | ||
PAW-TG20C1E3STD-1 | Tank 200L - Enamelled | ||
PAW-TG30C1E3STD-1 | Tank 300L - Enamelled | ||
CZ-TK1 | Temperature sensor for 3rd party tank | ||
PAW-3WYVLV-SI | 3 way valve | ||
PAW-BTANK50L | Buffer tank 50L | ||
PA-AW-WIFI-1TE | Wifi interface | ||
PAW-A2W-BIV | Bivalent control | ||
PAW-A2W-RTWIRED | Room thermostat |

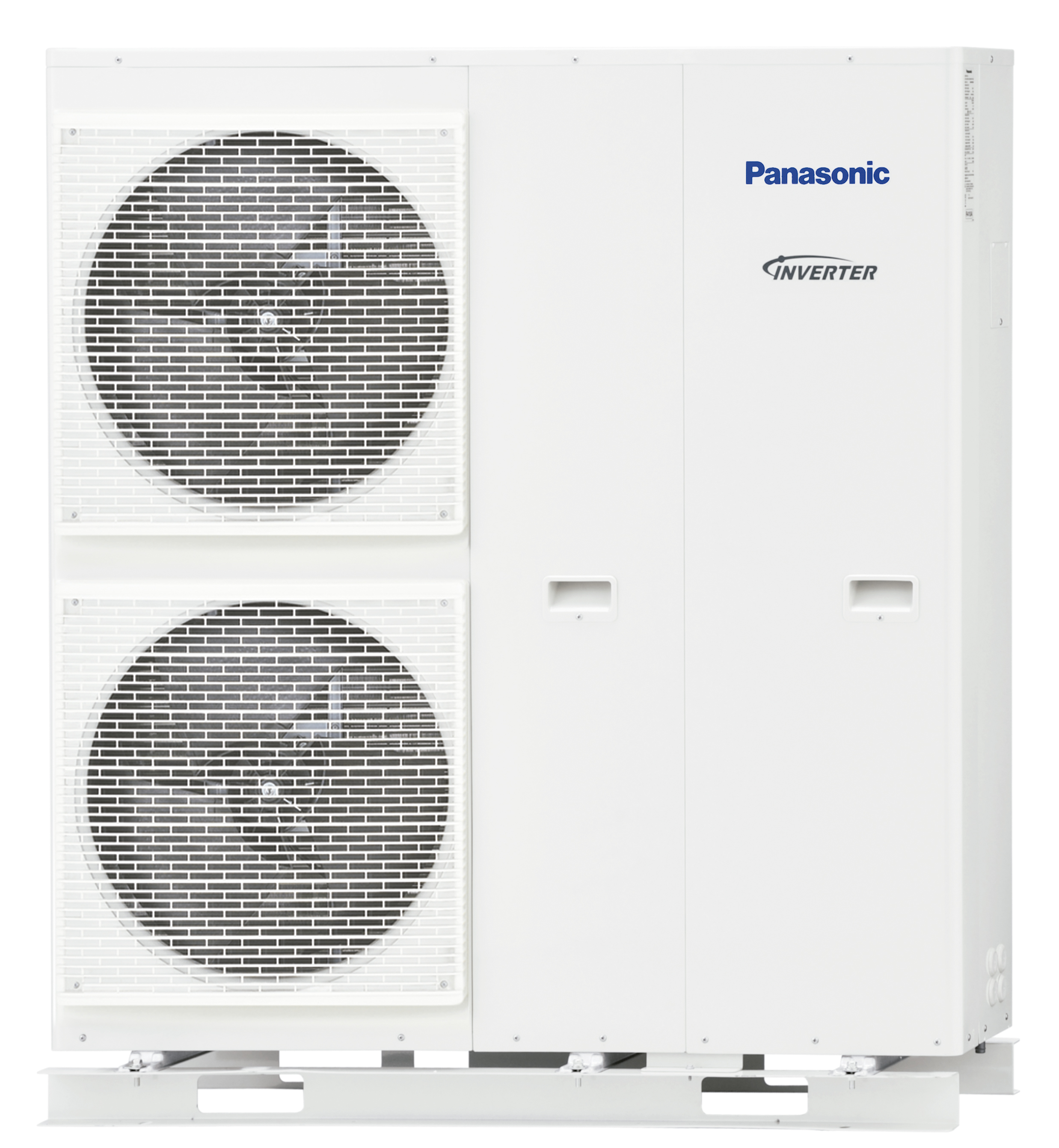

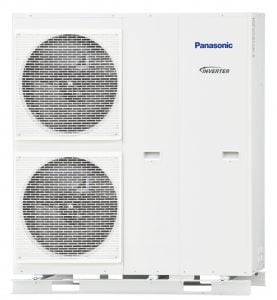

Product Images
